Simple Bevel

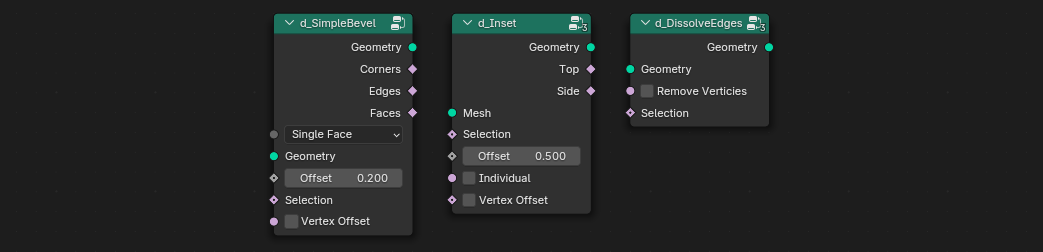

Geometry node groups for bevel, inset and dissolve operations along with a selection of examples. I'm sure we will get official nodes for all three operations at some point, but I hope people will find these useful until then.

The groups are marked as assets so you just need to place the file in your assets directory for them to show up in the asset browser. There are also 2 additional node groups, line intersection and merge by group, included in the file that are not marked as assets by default.

This was created in Blender 4.4. It does not use any of the features added in 4.4 so it may work in 4.3 but I have not tested it.

Limitations:

• Dissolve Edges node will delete any edges or verticies not attatched to a face.

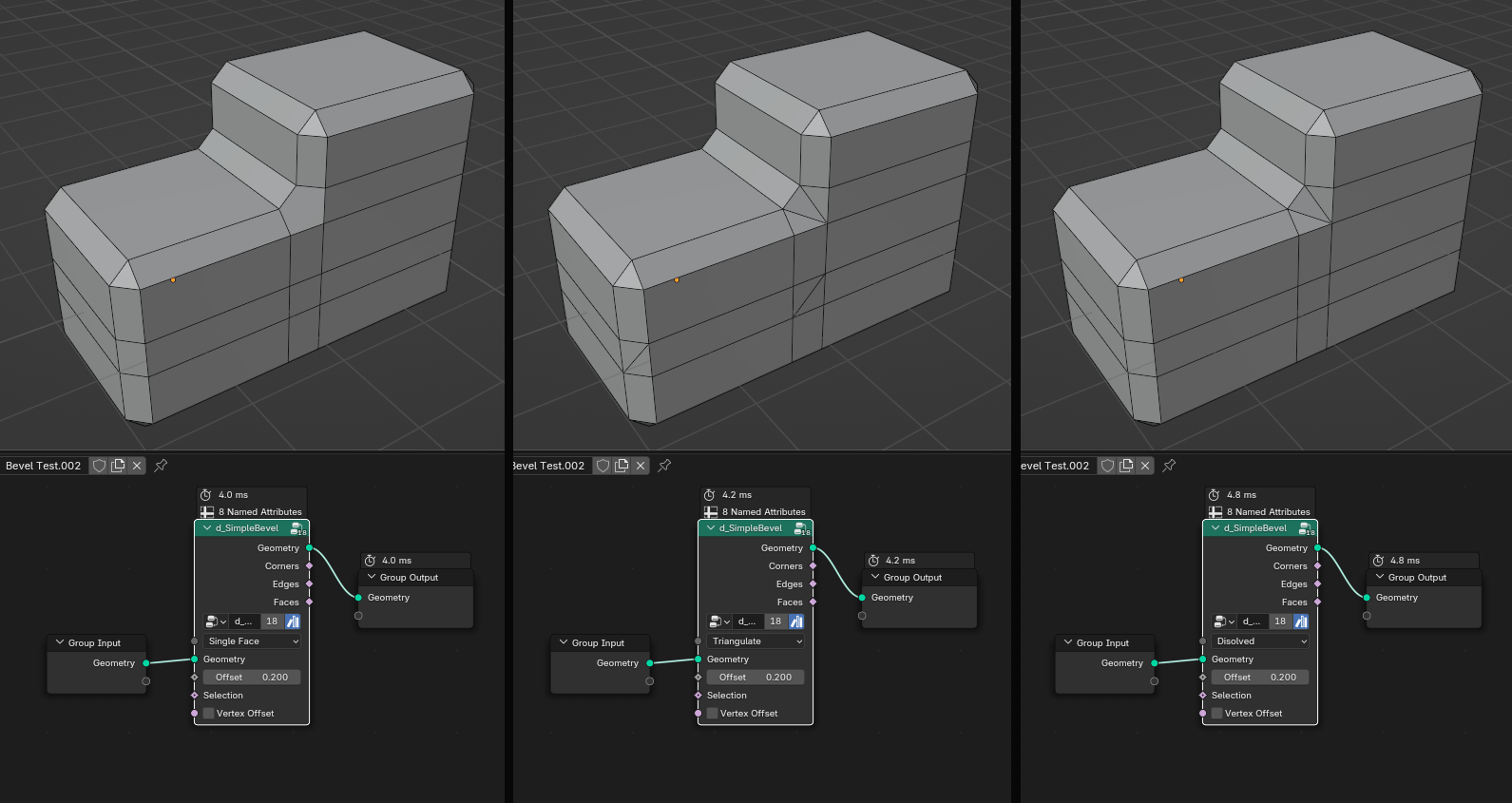

• Bevel node can only create a bevel with 1 segment.
• Inset and Bevel nodes do not adjust the uv map.
• The corners of the bevel node do not have any material applied.
• Dissolve Edges node will remove the material from any affected faces.
